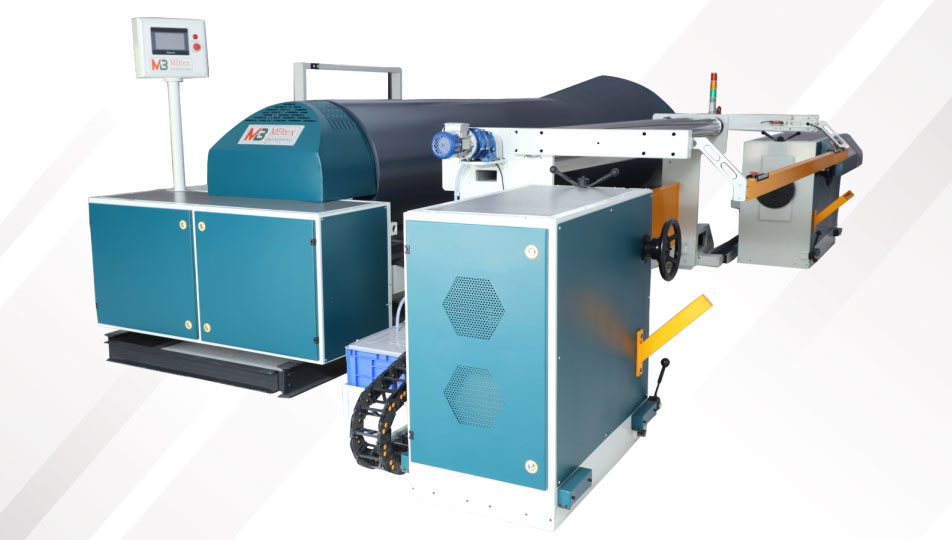

Sectional warper: innovation and functionality
Sectional warping machinery are used in the textile industry for warp preparation, a key step in creating the fabric. These machines make it possible to create warp of high quality and precision, ensuring reliability, high productivity and greater uniformity of textile products.
| Precision Control | Achieve consistent warp beam quality with precise tension control. |
| High Speed | Boost productivity with speeds of up to 600 meters per minute. |
| User-Friendly Interface | Intuitive Touch screen controls for easy operation. |
| Quality Assurance | Built-in sensors ensure uniform beam tension. |
| Flexibility | Easily adapt to different yarns and beam sizes |
| Safety | Operational safety provided by photo sensor. |
- Benefits
| Increase Productivity | With zero missing Thread to Reduce downtime and increase output |
| Cost Efficiency | Minimize material wastage and maintenance costs |
| Improve Quality | Ensure uniform Beam & Warp Tension for high-quality fabrics |
| Adaptability | Easily switch between Yarn types and Beam sizes |
| User-Friendly | Intuitive control for easy of operation |
| Reliability | Built to last with minimal maintenance requirements |
Applications
"Our Sectional Warping Machine ae ideal for wide range of applications"
| Apparel and Fashion | Create fabric for clothing and accessories |
| Home Textiles | Weave high-quality materials for Suiting, Shirting, Bedding, Upholstery and more |
| Technical Textiles | Produce specialized materials for various industries like Defence, Medical and Housing |
| Customization | Adapt the machine to your specific production needs |
- Product Features
- Control Interface: Touch screen with high resolution
- Hydraulic disc brakes with Auto Tension reduction during Beaming
- Shaft less robust drum design. (Suitable FOR MONO YARN)
- Constant Warping and Beaming speed
- Missing Thread record & auto stop during Beaming operation
- Section Thread pattern selection
- Direct drum drive by "V" belts
- ABB make motor (Warping, Beaming and Hydraulic )
- Separate warping and Beaming structure
- Pitch control by servo Motor and drive make Siemens
- All the switch gear make Siemens
- Machine wall robust design
- Data storage and records facilities
- Technical Specifications
| Model | RAPID 8000/10000 |
| Machine working width | 2200 TO 5000 MM |
| Warp Beam Diameter | 800 TO 1000 MM |
| Warping Speed | Up to 600 MPM ( can customize on request ) |
| Beaming Speed | Up to 100 MPM ( can customize on request) : |
| Beaming Tension | up to 450 KGS (can customize on request) |
| Cone Angle | 7, 8.5, 10.5" |
- Optional Device
- Waxing device
- Eyelet board
- Fluted roller
- Static eliminator on leasing
- Static eliminator on warp table
- Static eliminator on Creel
- Beam pressing device
- Close loop Tension device
- Auto Beaming Tension
- Quality Assurance
Our Sectional Warping Machine is built to meet the highest quality standards, ensuring durability, reliability, and consistency in every production run. We are committed to the successful operations of our clients by ensuring highest quality and servicing standards.
